NANO COOLANT SYSTEM
TRANSFORM FACTORY ENVIRONMENTS WITH NANO COOLANT!
THE POWER OF NANOTECHNOLOGY CREATES COOLANT ENVIRONMENT
THE POWER OF NANOTECHNOLOGY OF APPROX. 150 MILLION PARTICLES/mL

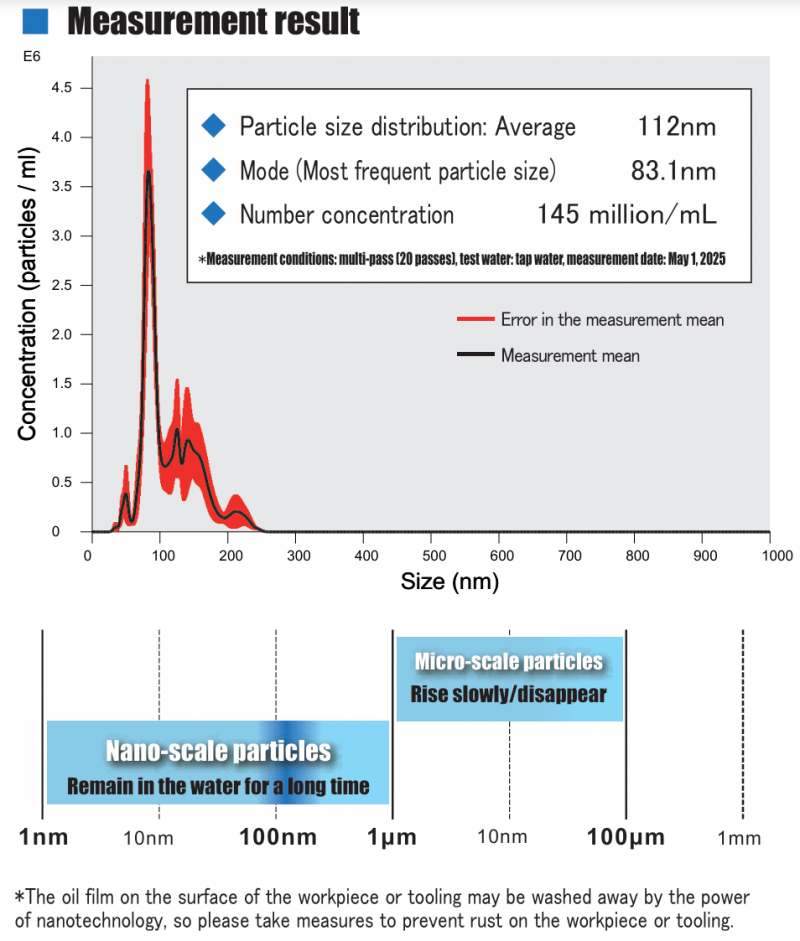

A generator installed in the holder body generates nano-scale particles with an average particle diameter of 112 nm at a particle concentration of 145 million particles per mL, which enhances the cooling effect of the coolant (please refer to the measurement result shown in the following diagram).
FOR IMPROVEMENT OF FACTORY ENVIRONMENT
Nano-scale particles remain suspended in the coolant for a certain period of time, inhibiting the growth of anaerobic bacteria. This eliminates bad odors and produces cleaning effect on coolant tanks and piping, contributing to improvement of factory environment.
NO POWER SOURCE OR AIR SOURCE REQUIRED
tornado technique which does not require power and air source, you can try out the power of nanotechnology right away without stopping the machine for installation.
TWO NANO COOLANT SYSTEM STYLES TO SUIT YOUR NEEDS

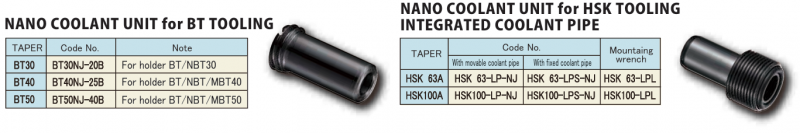

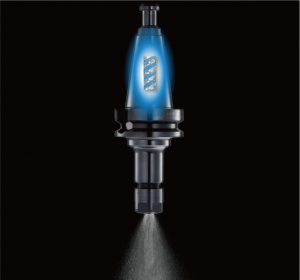

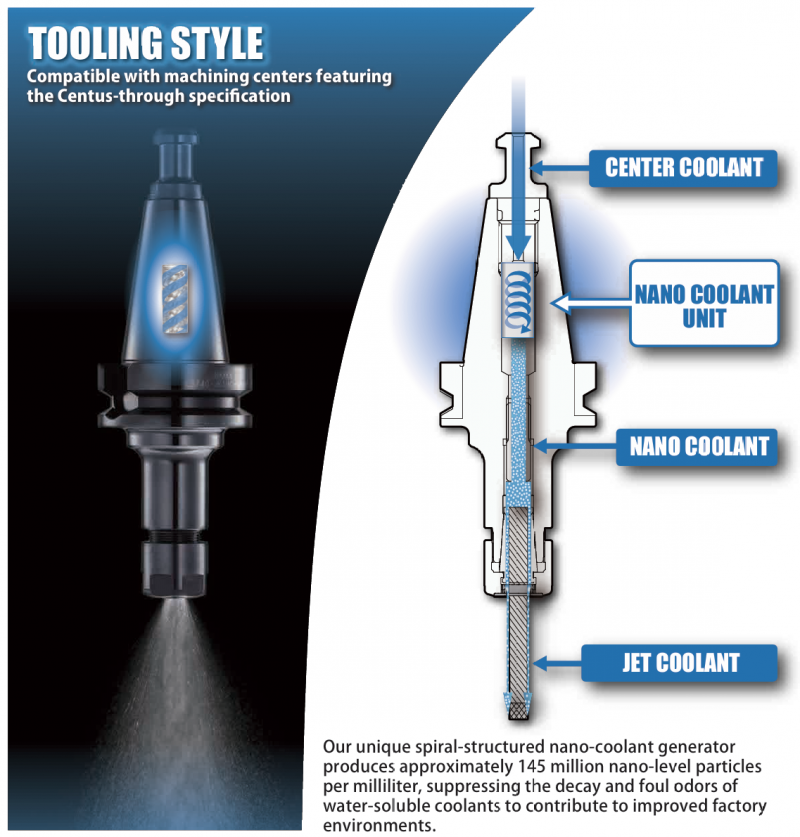

NANO COOLANT UNIT
The nano-coolant unit, featuring a built-in nano-coolant generator, can be easily mounted on compatible Nikken Tooling. It can be immediately introduced into machining operations simply by changing tools. Furthermore, even if you feel the nano-coolant's effectiveness has diminished due to aging, you can order just the unit section and easily replace it on your end.

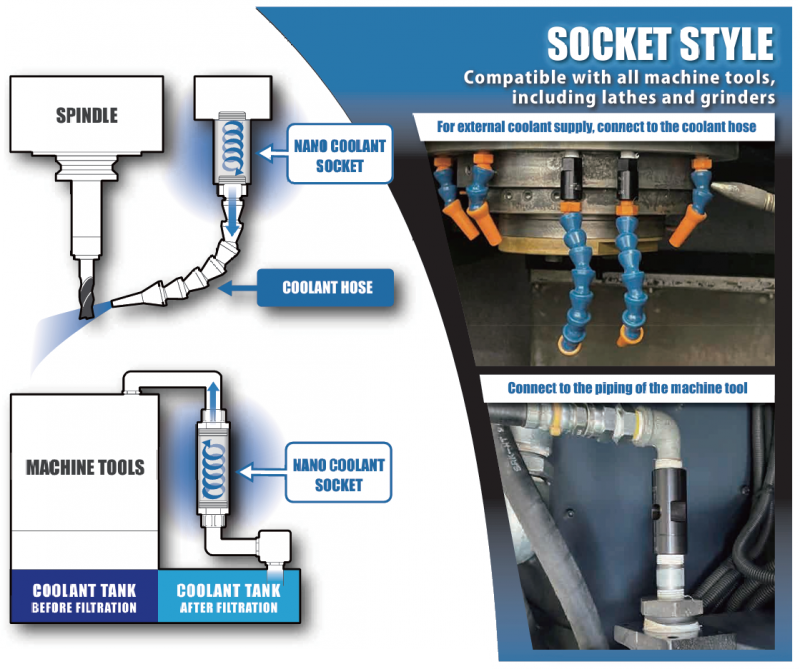

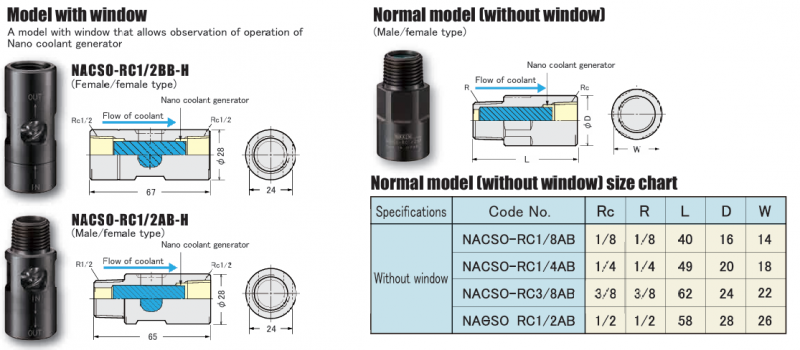

NANO COOLANT SOCKET
The nanocoolant socket, which incorporates a built-in nanocoolant generator, can be attached to coolant hoses or piping. It enables machining with external lubrication and can be widely used on machine tools other than machin ing centers, such as lathes and grinding machines.
