VC HOLDER

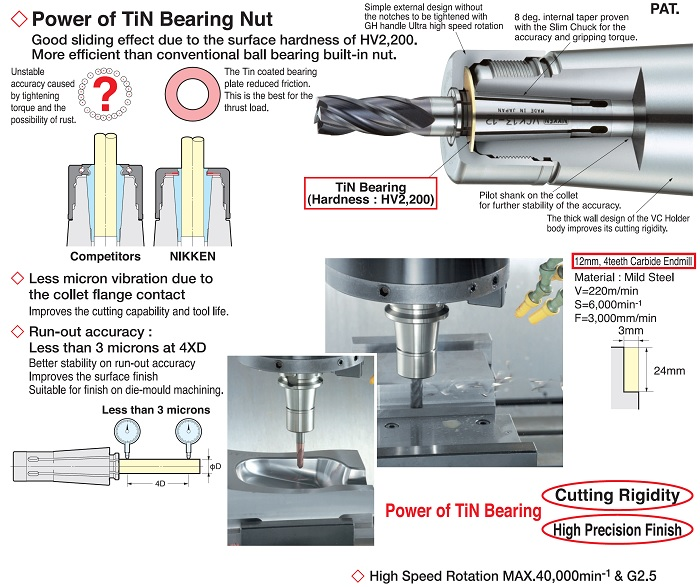

The ultimate End Mill Holder series with TiN Bearing Nut, featuring improved gripping torque and minimum change in run-out accuracy.

◎Low micro-vibration due to collet flange contact
Improves the cutting force and enables longer tool life.

◎Run-out accuracy: Less than 3 micrometers at the nose (edge of 4D).
Improved stabilization of run-out accuracy.
Improves the surface finish.
Optimal for final mold finish.

◎MAX40000min-1 G2.5
