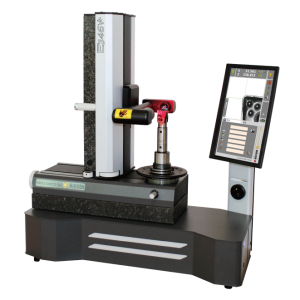

E346V+


Equipped with vacuum clamp. A higher-grade, high-performance compact model that is optimal for the BT30 / 40 class

最大測定範囲
工具径:φ360mm
工具長:460mm

Max Tool Length: 460mm


Tool length can be up to 460mm as standard. Ideal for BT30 / 40 class tools.

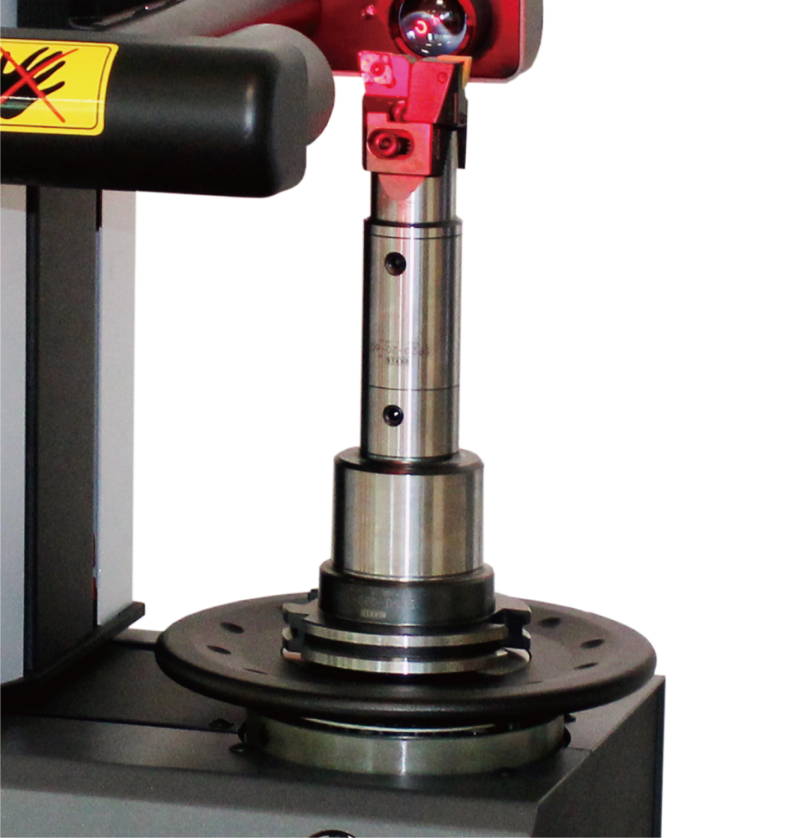

Vacuum Tool Clamping System


Regardless of the style or type of pull stud used, the vacuum tool clamping
systems will securely hold the toolholder for accurate measurement.

15 Inch Touch Panel Screen


Large touch panel makes learning and operation of the unit intuitive and simple.

Linux Ubuntu Operating System

LINUX UBUNTU operating system allows for a fast start up or shut down process.

Auto-Radius / Angle Measurement


Auto-measuring function for both radius and angle of tools.

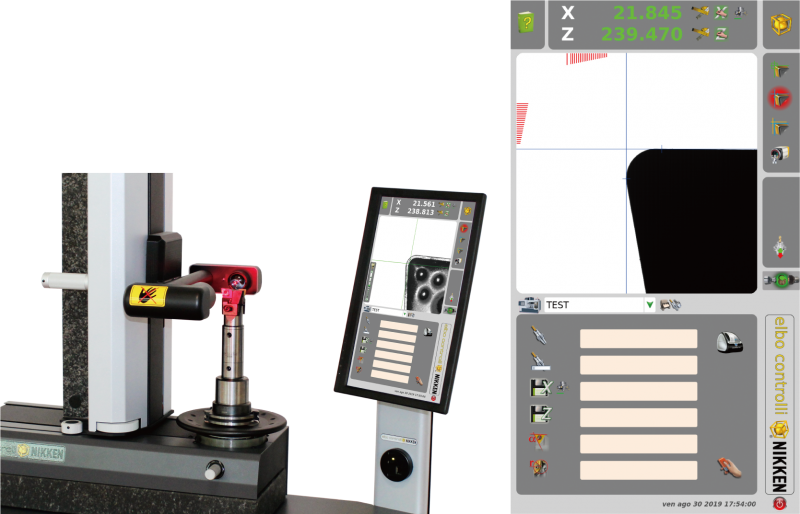

Auto-Targeting Measurement

E460N has Auto-Targeting mode, which automatically captures the maximum points for X & Z axis. Fast and accurate measurements can be accomplished with minimal or no fine adjustment.

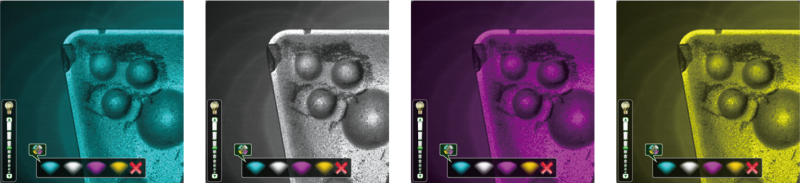

Tool Inspection - 25 X Zoom


Thorough and detailed inspection is capable due to the high power 25x zoom camera. Clarity is also intensified with the ability to adjust the intensity of the LED lights and background color.

Tool Management Software


Tool Management Software is pre-installed. Management of tool measurements is possible without connecting to a PC or a network. Being compatible with multiple post processors, measurements can also be easily transferred to various machining centers.

Optional Features

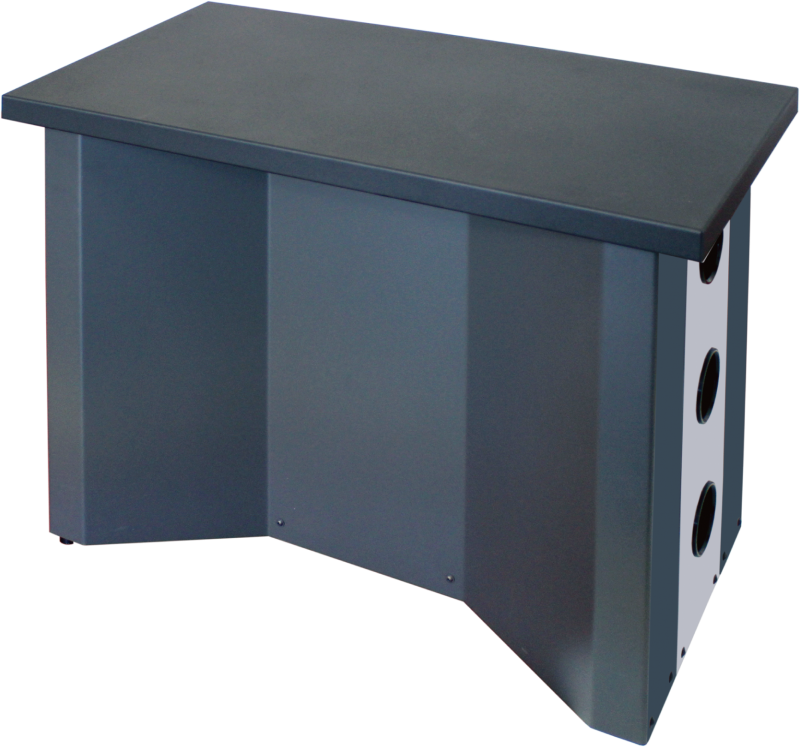

Machine Stand E346VP-STD(Optional)

A Good Ergonomic Design Stand is available. (Optional) Interchangeable Spindle Holders(3 stations) on the side.

SIZE:W984×H754×D504mm WEIGHT:66kg

DYMO Label Printer (Optional)

DYMO Label Printer can be connected with the machine.(Optional)

Product Dimension
